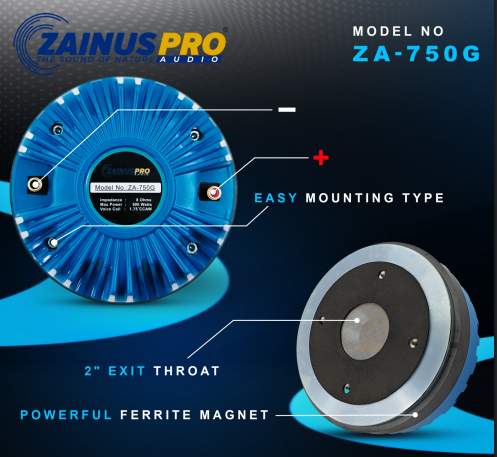

TECHNICAL SPECIFICATIONS

• Exit Throat: 2 INCH

• Nominal Impedance: 8 Ω

• RMS Power Handling: 80 WATTS

• Max Power Handling: 500 WATTS

• Sensitivity @1W/1M: 109 DB

• Usable Frequency Range: 1.0-20 KHZ

• Voice Coil Diameter: 2 INCH

• Voice Coil Material: CCAW

• Voice Coil Former: KAPTON

• Flux Density: 1.65 T

• Magnet Material: FERRITE

• Diaphragm Material: TITANIUM

• Mounting Type: SCREW ON

• Cover Material: ALUMINIUM
